PPO : Proximal Policy Optimization

Deepmind's DQN : Deep Q-Network (2014)

  • Unstable
  • It's an offline method, i.e. it learns from previous policies. (So you are updating the policy with the data that is not from your policy)
  • It uses value bootstrapping.

TRPO : Trust Region Policy Optimization (2015)

  • Alternative policy update method, which is an optimization function, which is subjected to a constraint.
  • Constraint is KL-divergence between old network and new network.
  • One big issue with TRPO is it's complicated.

PPO : Proximal Policy Optimization (2017)

  • Easier to understand & implement
  • Conservative rewards & unlimited penalties

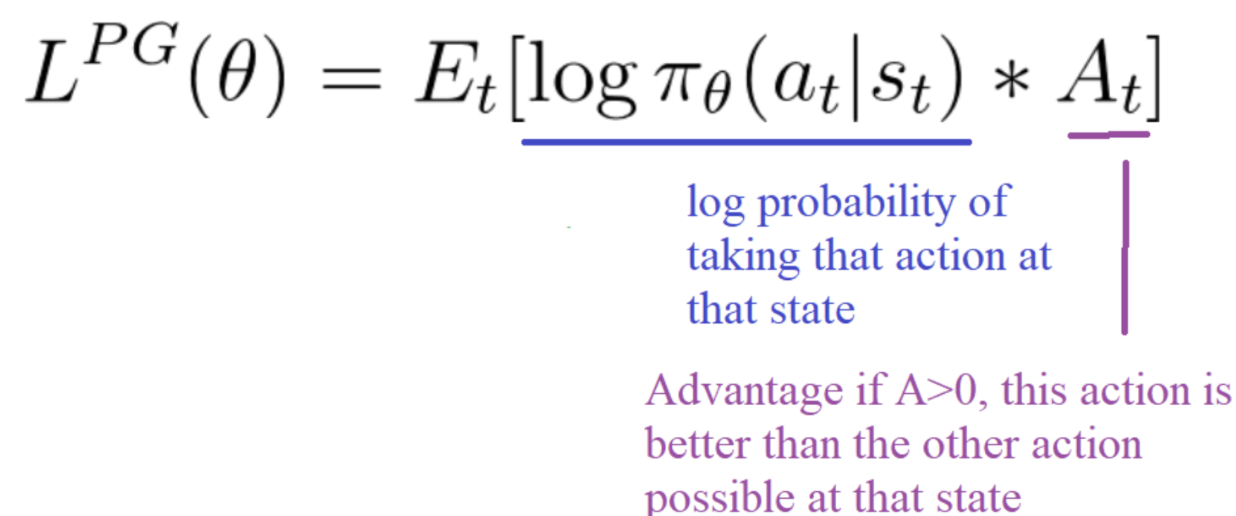

  • Remember the Policy Objective Function for RL:

ppo_objective_function

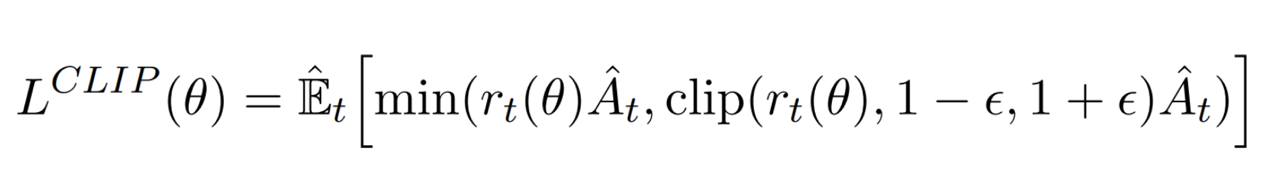

  • With PPO, the idea is to constrain our policy update with a new objective function called the "Clipped surrogate objective function" that will constrain the policy change in a small range using a clip.

clipped_surrogate_objective_function

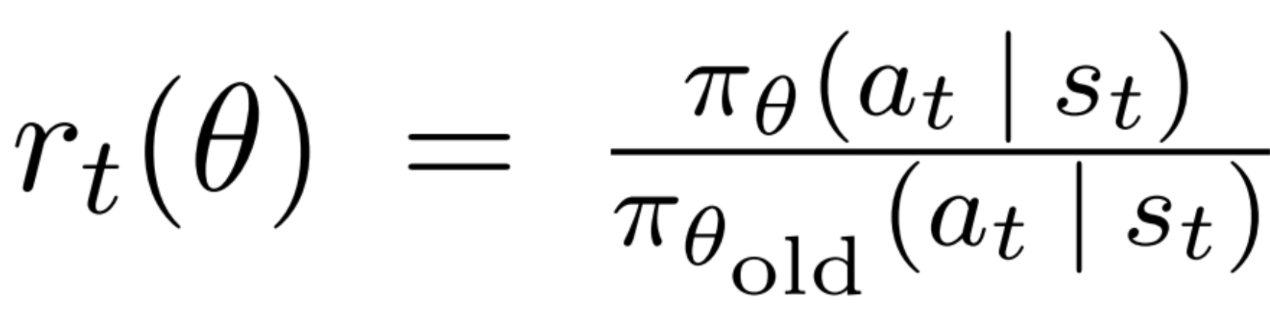

  • The ratio function is calculated as follows:

ratio_function

  • It’s the probability of taking action \(a_t\) at state \(s_t\) in the current policy, divided by the same for the previous policy.
  • By clipping the ratio, we ensure that we do not have a too large policy update because the current policy can’t be too different from the older one.

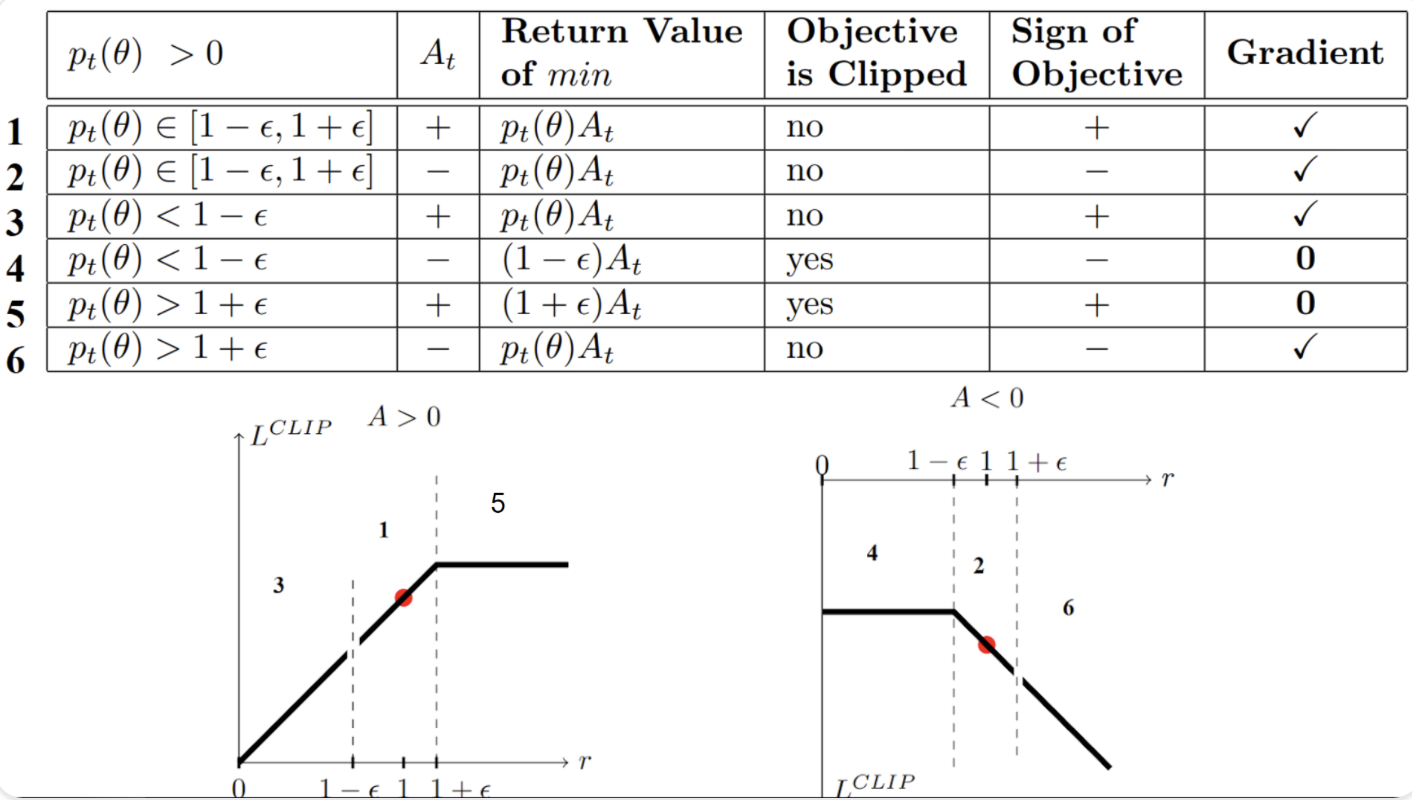

ppo_regions
