Multi-Container Pods

Most common scenario: Helper processes

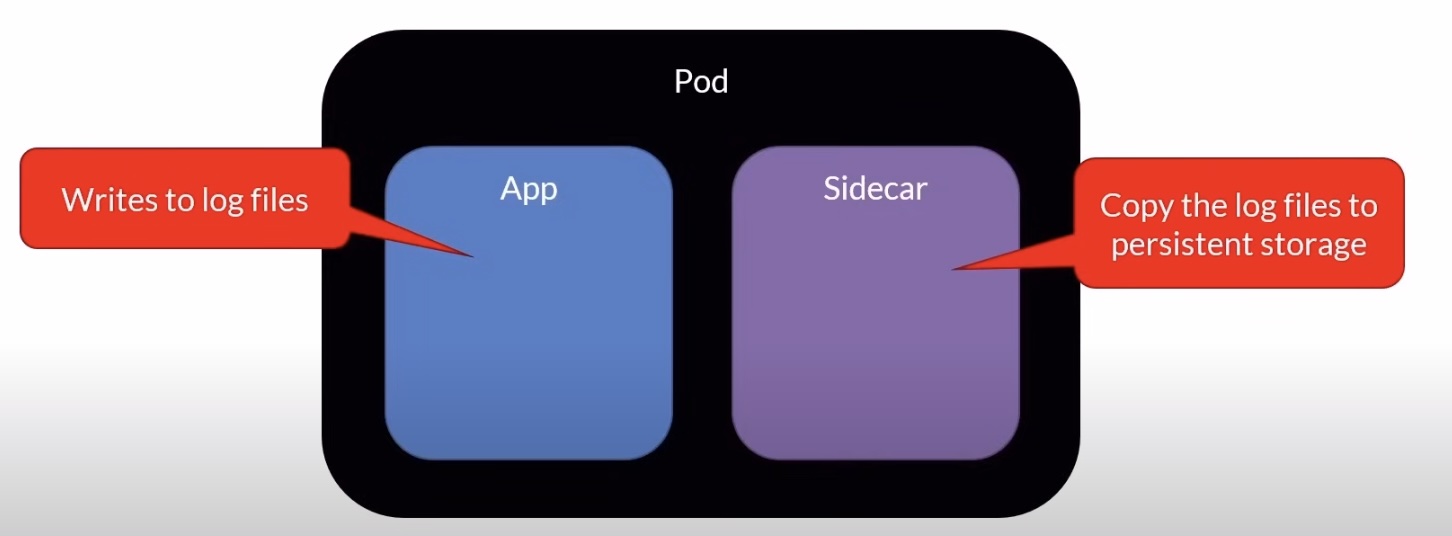

Typical Patterns - Sidecar

• The helper container provides extra functionalities to the main worker
• Let's say that our app writes some log files inside the pod
• The sidecar can copy these log files to some persistent storage offered by the cloud provider
• This way the application code located inside the main worker is not cluttered with infrastructure code
• That code is located in the helper container
• If you move from one cloud provider to another one, you simply replace or update that helper code
• This keeps your application code super clean

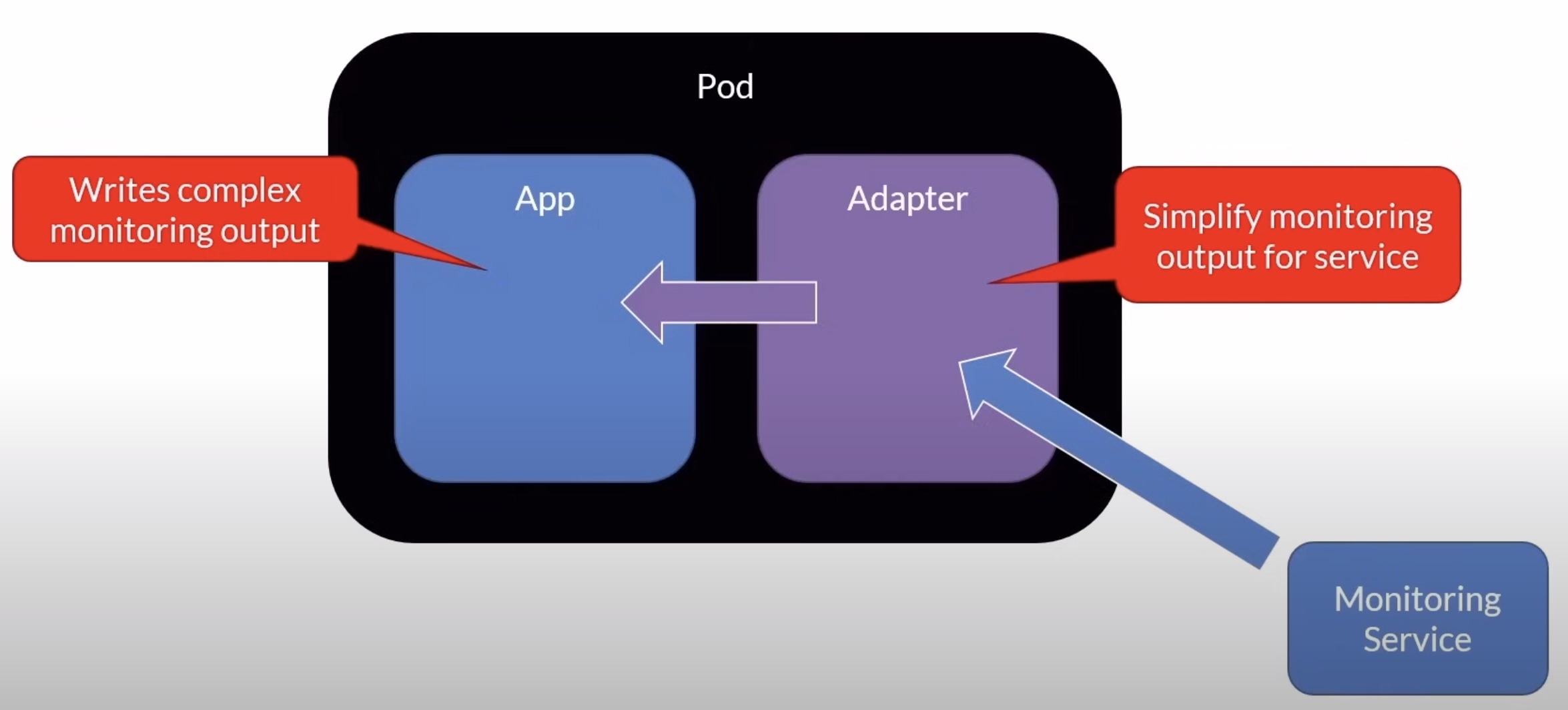

Typical Patterns - Adapter

• Let's say that our main worker outputs some complex monitoring information that the monitoring surface of our cloud provider cannot understand
• The adapter role would be to connect to the main worker, simplify the data for the monitoring service
• Again, the code specific to the cloud provider service is located inside the helper container

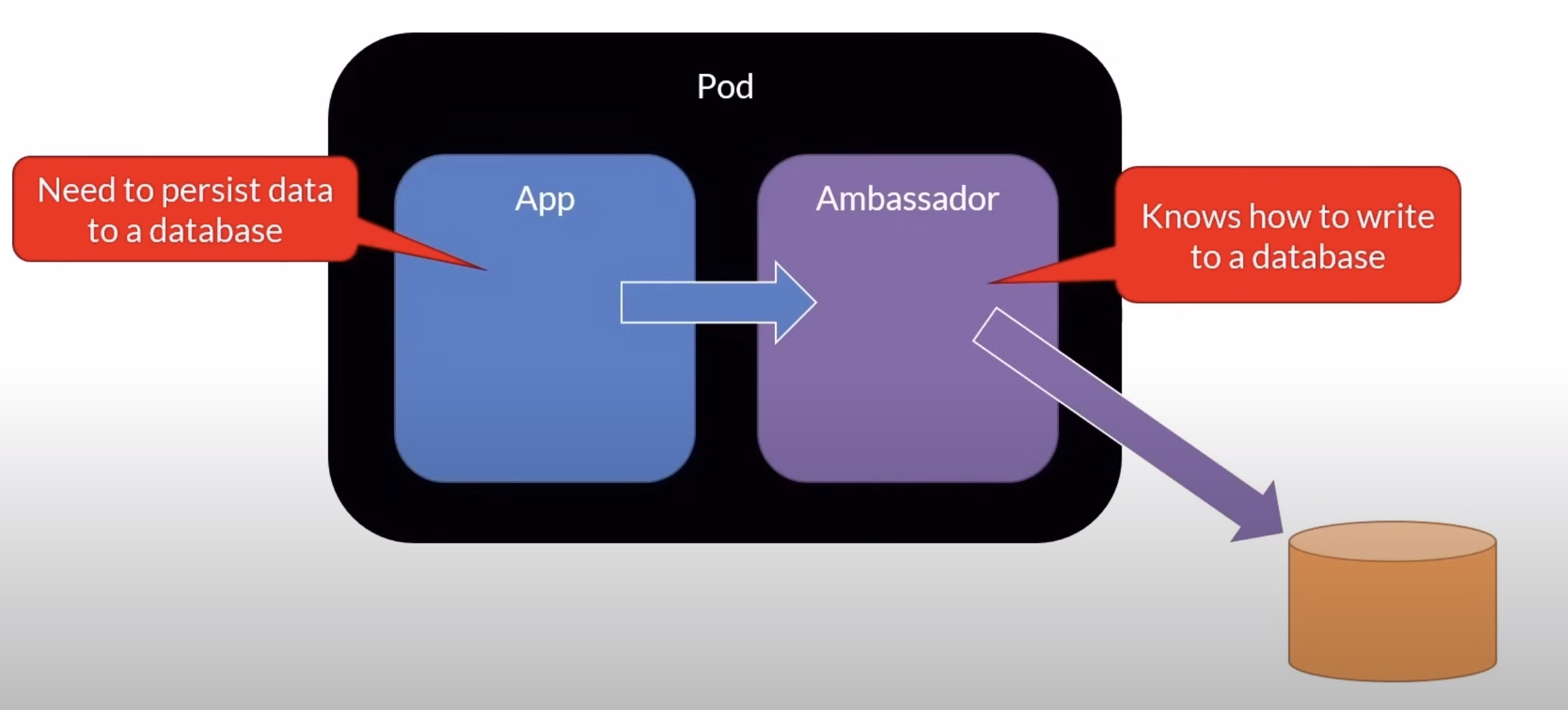

Typical Patterns - Ambassador

• The Ambassador pattern is another type of the middle role
• Let's say that our application code needs to write to some NoSQL database but the code has no clue on how to do that
• No problem, you can send that data to the Ambassador that in turn will write the data to the NoSQL data store
• The code specific to the data store service is located inside the helper container

kubectl - Pod Cheat Sheet

# Create a pod
kubectl create -f pod-definition.yaml

# Exec into a pod
kubectl exec -it myapp-pod -c simple-webapp -- sh

# Get the logs for a container
kubectl logs myapp-pod -c simple-webapp

Networking Concepts

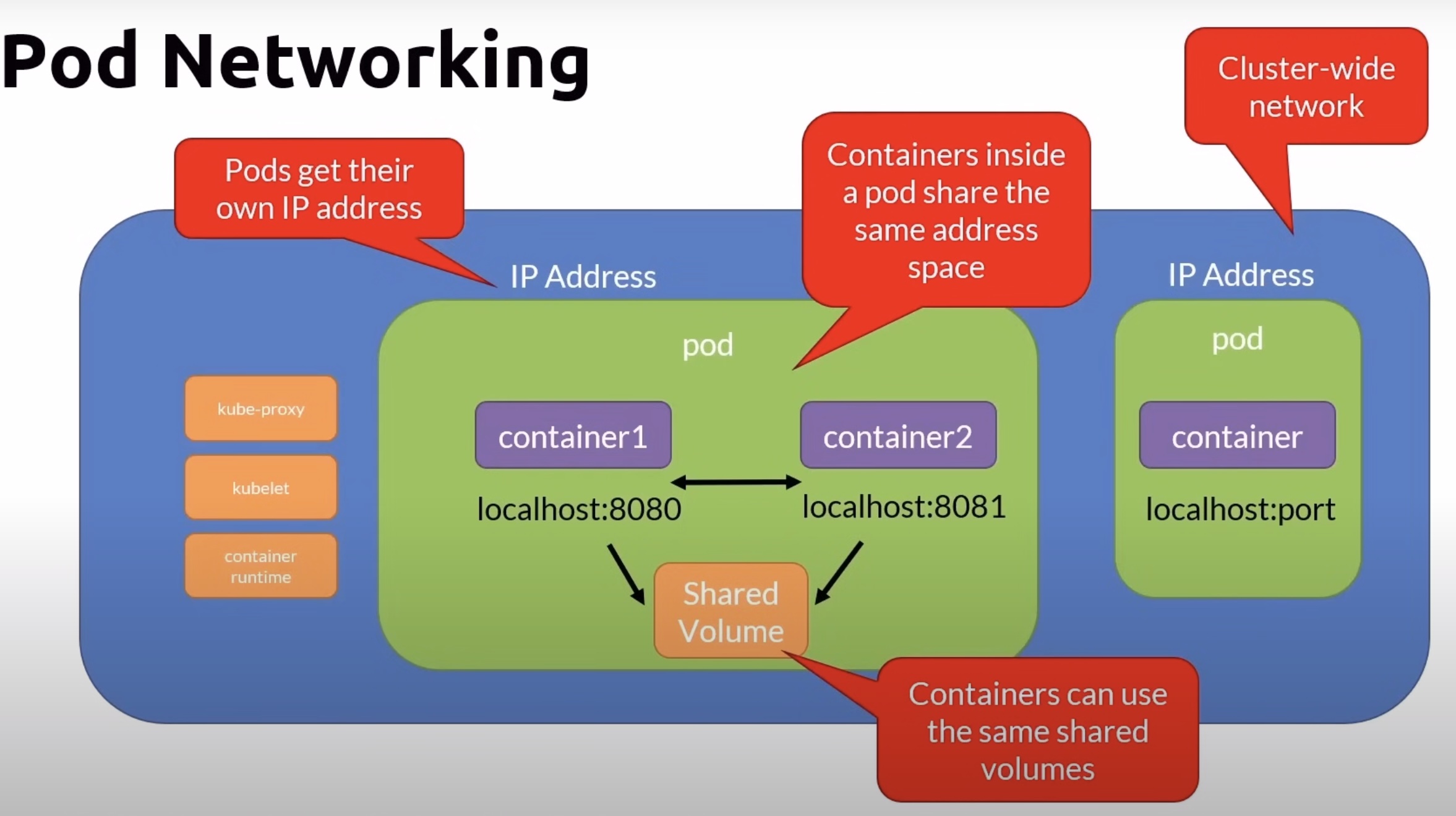

Pod Networking

• All containers within a pod can communicate with each other
• All pods can communicate with each other
• All nodes can communicate with all pods
• Pods are given an IP address (ephemeral)
• Services are given a persistent IP

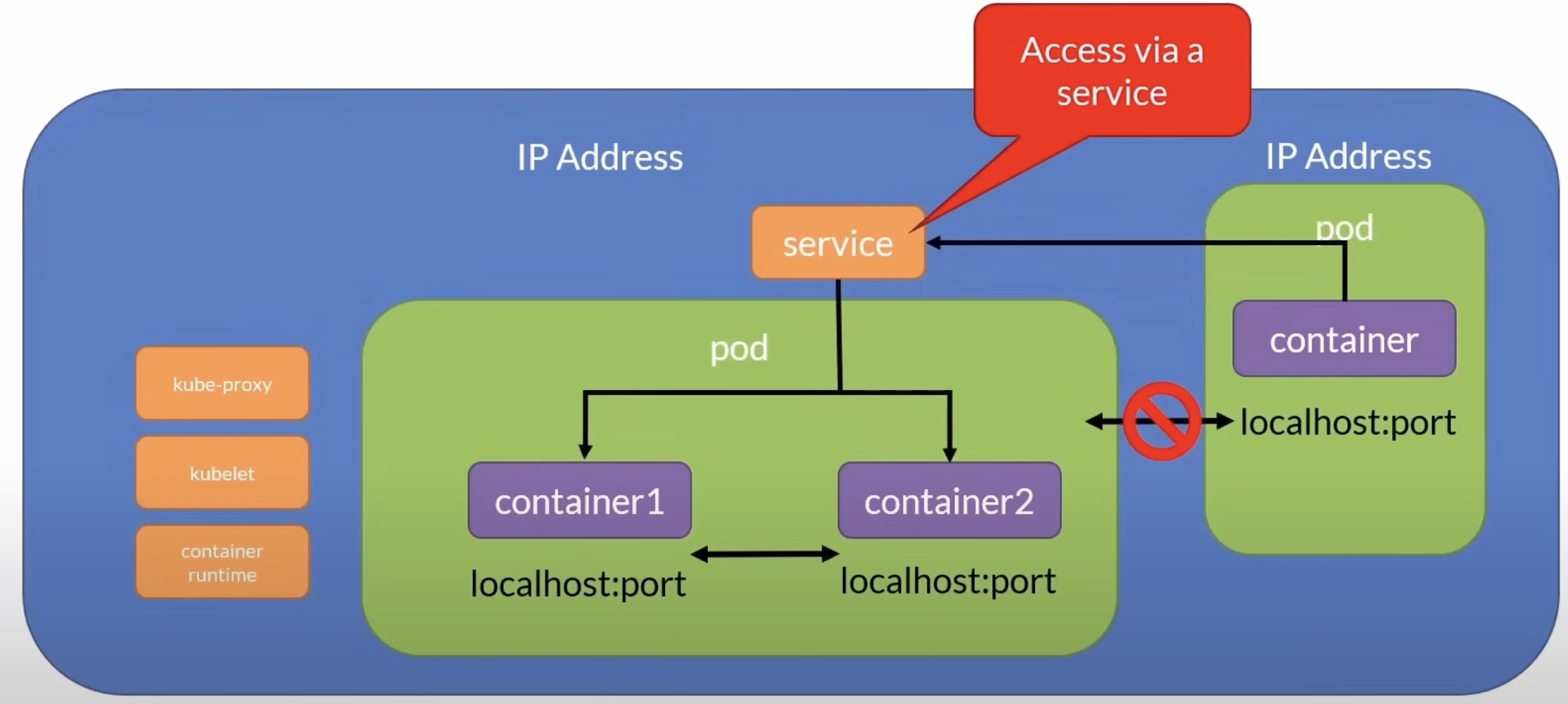

Interpod Networking

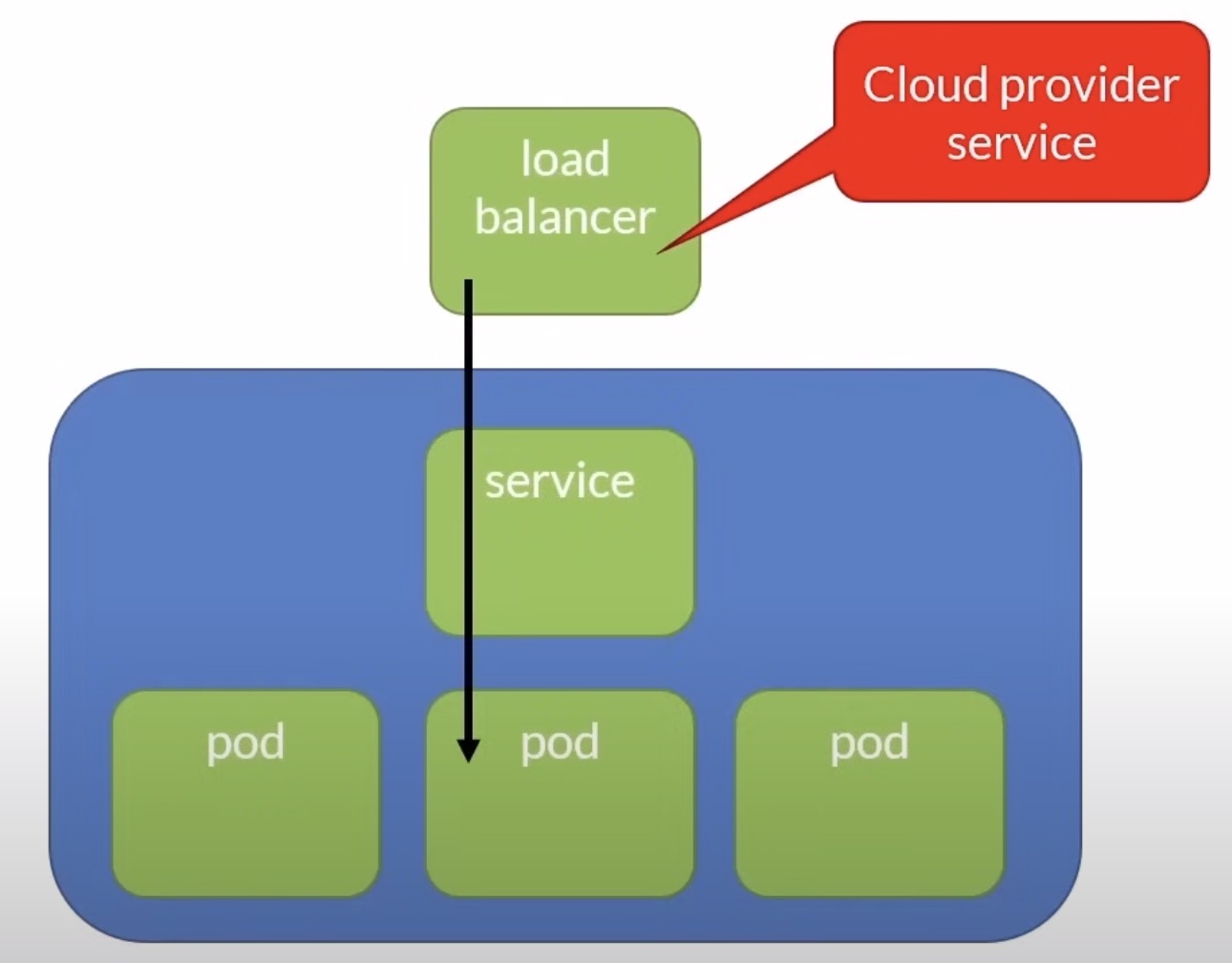

Externak Access

---

See L23-03 for more details.
