Pods

  • Atomic unit of the smallest unit of work of K&s
  • Encapsulates an application's container
  • Represents a unit of deployment
  • Pods can run one or multiple containers
  • Containers within a pod share
  • IP address space, mounted volumes
  • Containers within a pod can communicate via
  • Localhost, IPC
  • Pods are ephemeral
  • Deploying a pod is an atomic operation, it succeed or not
  • If a pod fails, it is replaced with a new one with a shiny new IP address
  • You don't update a pod, you replace it with an updated version
  • You scale by adding more pods, not more containers in a pod

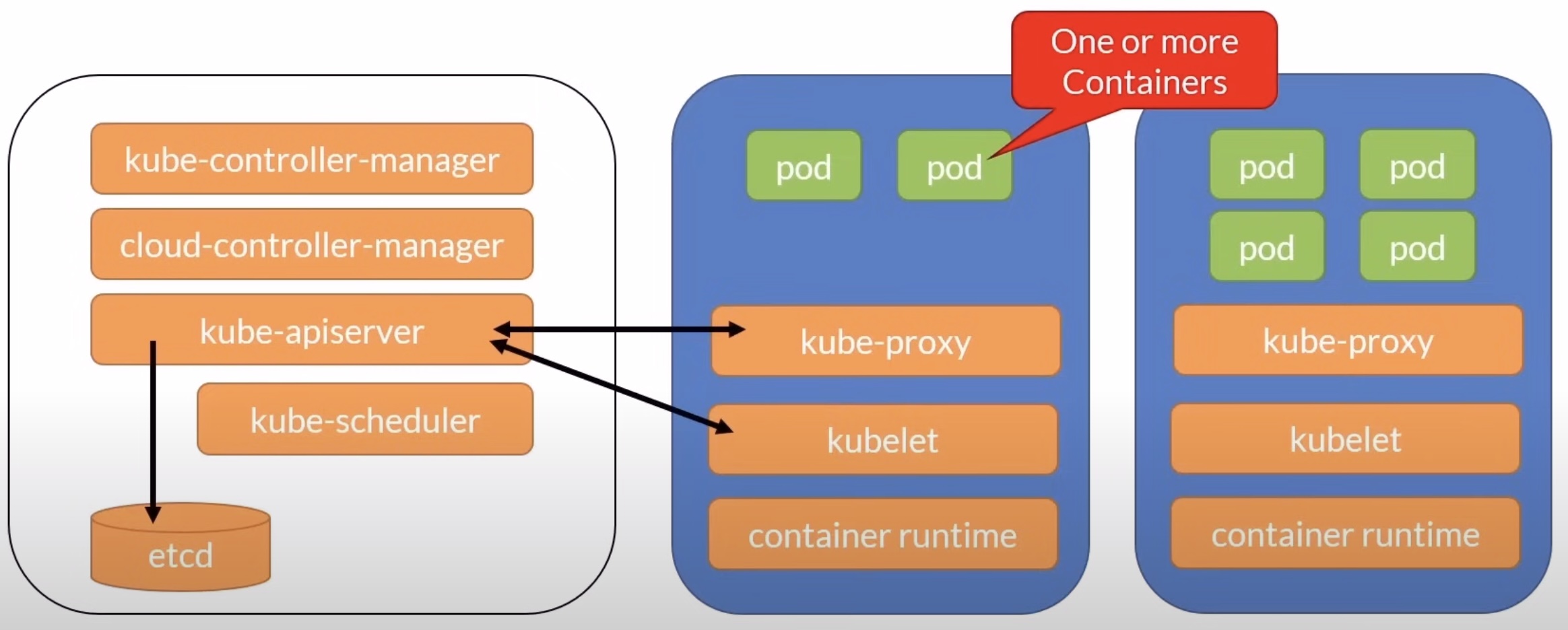

Pods

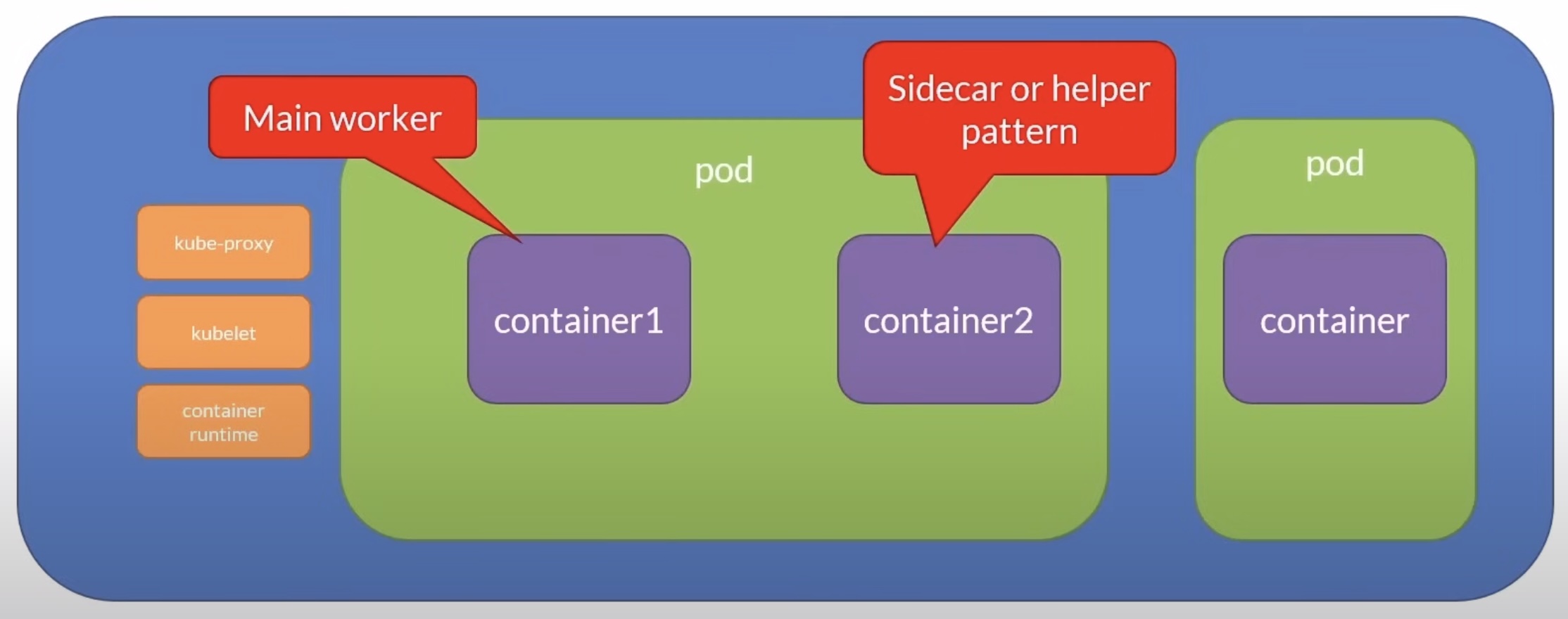

Pods_2

Pod Lifecycle

Pod Creation

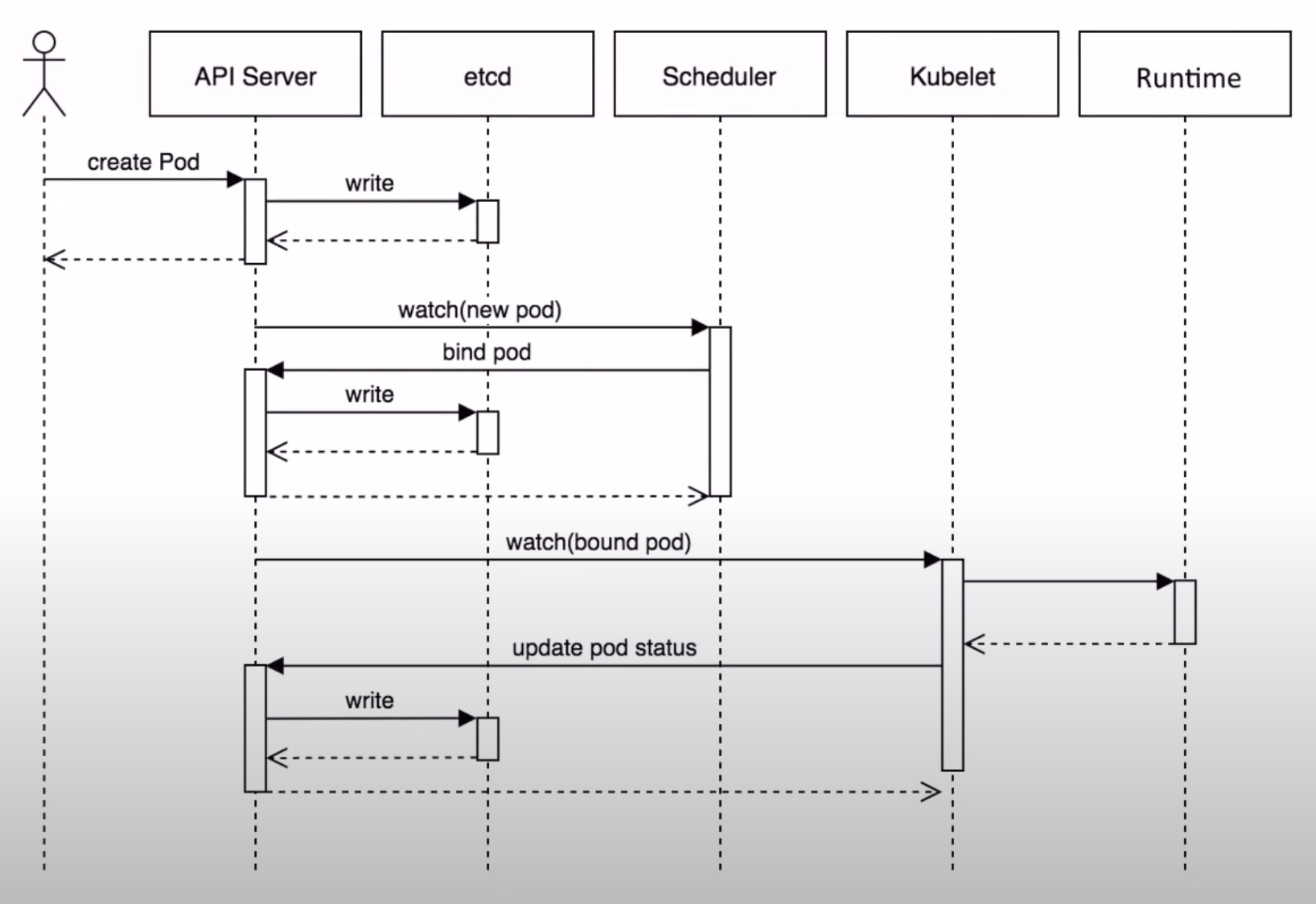

Pod Creation

  • When we issue a kubectl create command to deploy a pod in our cluster, the CLI sends the information to the API server
  • That information will be written into etcd
  • The scheduler will watch for this type of information, look at the nodes and find one where to schedule the pod and write that information in etcd
  • The kubelet running on the node will watch for that information and issue a command to create an instance of the container inside a pod
  • Finally the status will be written in etcd

Pod Deletion

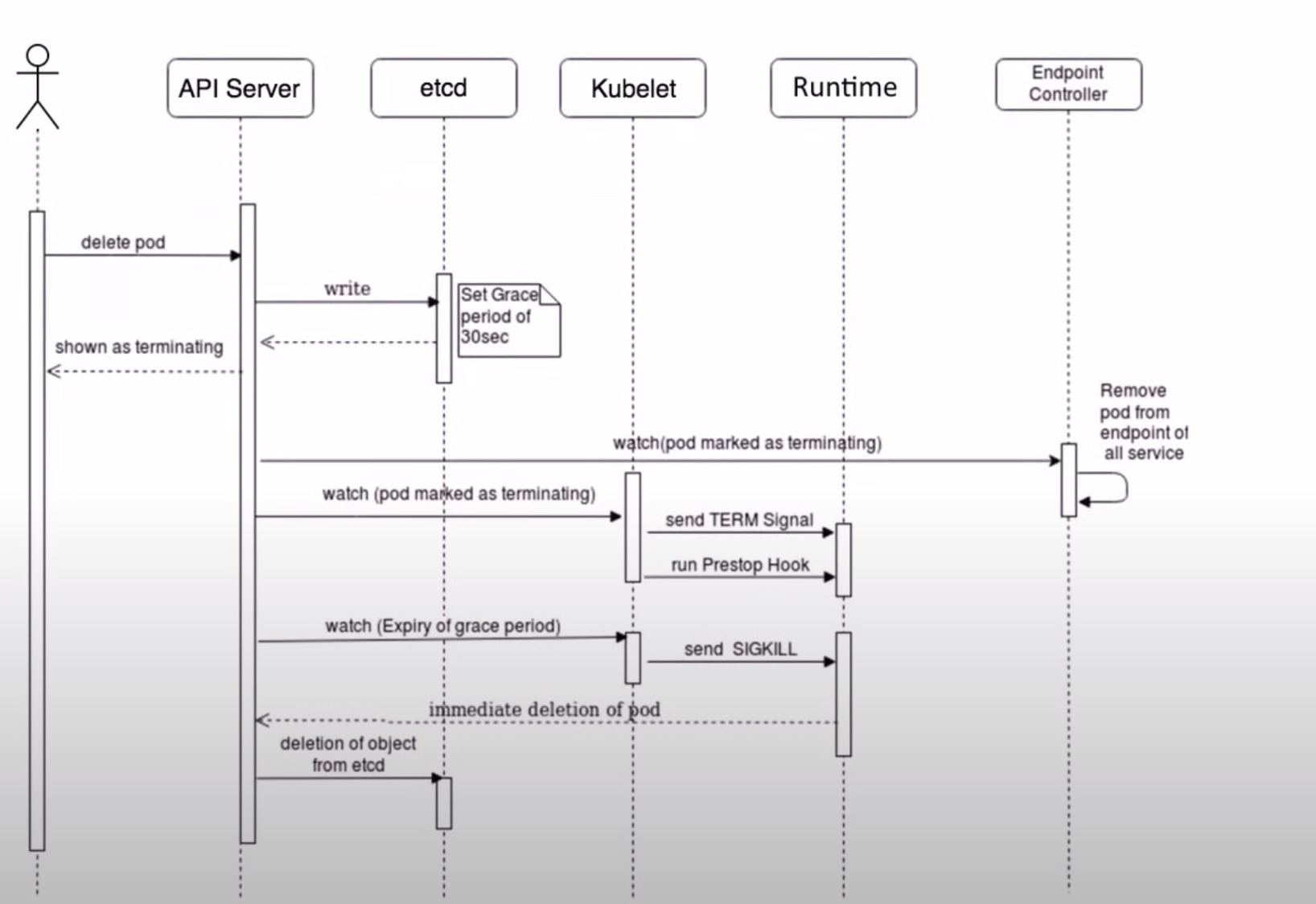

Pod Deletion

  • When you issue a kubectl delete command to delete a pod from your cluster the CLI sends the information to the API server
  • That information will be written in etcd and notice that the grace period of 30 seconds will be added
  • So the kubelet picks that information and sends a terminate signal to the container
  • If the container hangs it is killed after the 30 seconds grace period
  • And finally the state is stored in etcd

Pod State

  • Pending : Accepted but not yet created
  • Running : Bound to a node
  • Succeeded : Exited with status 0
  • Failed : All containers exit and at least one exited with non-zero status
  • Unknow : Communication issues with the pod
  • CrashLoopBackOff : Started, crashed, started again, and then crashed again

Defining and Running Pods

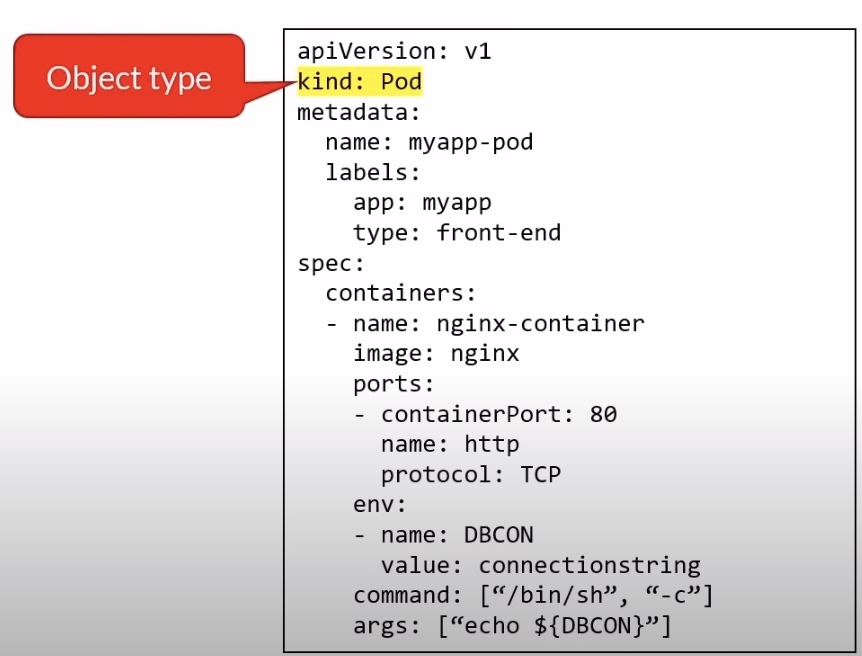

Pod yaml

  • To define a pod the declarative way you create a yaml file, specifiyin Pod as the kind, that's the type of resource we want to create
  • We specify an image location, in this case the nginx image will be pulled from Docker Hub, that's the default container registry
  • We set the port that the container will listen on
  • We can add labels, they are used to identify, describe and group related sets of objects and resources
  • We can set environment variables directly here, might not be the best idea to place configuration values in a later lecture we'll see how we can externalize that by the use of a config map object
  • We can even specify a command to run when the container starts

kubectl - Pod Cheat Sheet

# Create a pod
kubectl create -f pod-definition.yaml

# Run a pod
kubectl run [podname] --image=busybox -- /bin/sh -c "sleep 3600"

# List the running pods
kubectl get pods

# Same but with more info
kubectl get pods -o wide

# Show pod info
kubectl describe pod [podname]

# Extract the pod definition in YAML and save it to a file
kubectl get pod [podname] -o yaml > file.yaml

# Interactive mode
kubectl exec -it [podname] -- sh

# Delete a pod
kubectl delete -f pod-definition.yaml

# Same using the pod's name
kubectl delete pod [podname]

See L21-04 for more details.

Init Containers

  • Let's say that your app has a dependency on something can be a database an API or some config files you want to initialize or validate that these exist before launching the app
  • But you don't want to clutter your main logic with this type of infrastructure code
  • So what do you do you can use an init container that lets you initialize a pod before an application container runs
  • Let's say that for the app container to run it requires a series of configuration files in the Pod definition
  • You define a container that will run first
  • This is the init container
  • Upon completion kubernetes will start the app container

  • This is a great pattern for applications that have dependencies the init container job can be as simple as validating that a service or a database is up and running this keeps the infrastructure code out of the main logic

  • They always run to completion

  • Each init container must complete successfully before the next one starts
  • If it fails, the kubelet repeatedly restarts it until it succeeds
  • Unless it's restartPolicy is set to Never
  • Probes are not supported
  • livenessProbe, readinessProbe, or startupProbe

See L21-06 for more details.
